Magnetic Buzzer
Our company is a professional buzzer manufacturer, providing magnetic buzzer with top quality. Ariose Electronics Co., Ltd. is committed to our long-term strategy of continuously releasing innovative magnetic buzzer in a Taiwan market together with our partners. Our SMD magnetic buzzer is economical, perfect, they all meet the standard requires, easy to use and of long durability. We look forward to doing business with you and establishing an ongoing relationship.
| 產品型號 Part No. |
直徑 / 尺寸 Diameter / Dimensions |
高度 Height |
形狀 Shape |
款式 Type |
額定電壓 Rated Voltage |
工作電壓 Operating Voltage |
耗電流 Current Consumption |
共振頻率 Resonance Frequency |
音壓 Sound Pressure Level |
| (mm) | (mm) | (VDC) | (VDC) | (KHz) | |||||
| LF-MB09B03-001 | Φ9.0 | 5.5 | 圓形 Round |
DIP | 3.0 | 2.0 ~ 4.0 | Max. 30 mA / 3 VDC |
2.7 ± 0.3 | Min. 80 dB / 3 VDC / 10 cm |
| LF-MB09B05 | Φ9.6 | 5.0 | 圓形 Round |
DIP | 5.0 | 3.0 ~ 8.0 | Max. 30 mA / 5 VDC |
2.7 ± 0.3 | Min. 85 dB / 5 VDC / 10 cm |
| LF-MB09B05-004 | Φ9.6 | 5.0 | 圓形 Round |
DIP | 5.0 | 3.0 ~ 8.0 | Max. 30 mA / 5 VDC |
2.7 ± 0.3 | Min. 85 dB / 5 VDC / 10 cm |
| LF-MB09F05 | Φ9.6 | 5.0 | 圓形 Round |
DIP | 3.0 | 3.0 ~ 6.0 | Max. 30 mA / 5 VDC |
2.7 ± 0.1 | Min. 83 dB / 5 VDC / 10 cm |
| LF-MB09G03 | Φ9.0 | 4.3 | 圓形 Round |
DIP | 3.0 | 2.0 ~ 5.0 | Max. 30 mA / 3 VDC |
3.0 ± 0.1 | Min. 83 dB / 3 VDC / 10 cm |
| LF-MB09T03A | 9.6 * 9.6 | 5.0 | 方形 Square |
SMT | 3.0 | 2.0 ~ 5.0 | Max. 30 mA / 3 VDC |
3.0 ± 0.3 | Min. 80 dB / 3 VDC / 10 cm |
| LF-MB09T05A-A | 9.6 * 9.6 | 5.0 | 方形 Square |
SMT | 5.0 | 4.0 ~ 7.0 | Max. 30 mA / 5 VDC |
2.7 ± 0.3 | Min. 80 dB / 5 VDC / 10 cm |
| LF-MB12A03 | Φ12.0 | 7.5 | 圓形 Round |
DIP | 3.0 | 2.0 ~ 5.0 | Max. 30 mA / 3 VDC |
2.3 ± 0.5 | Min. 82 dB / 3 VDC / 10 cm |

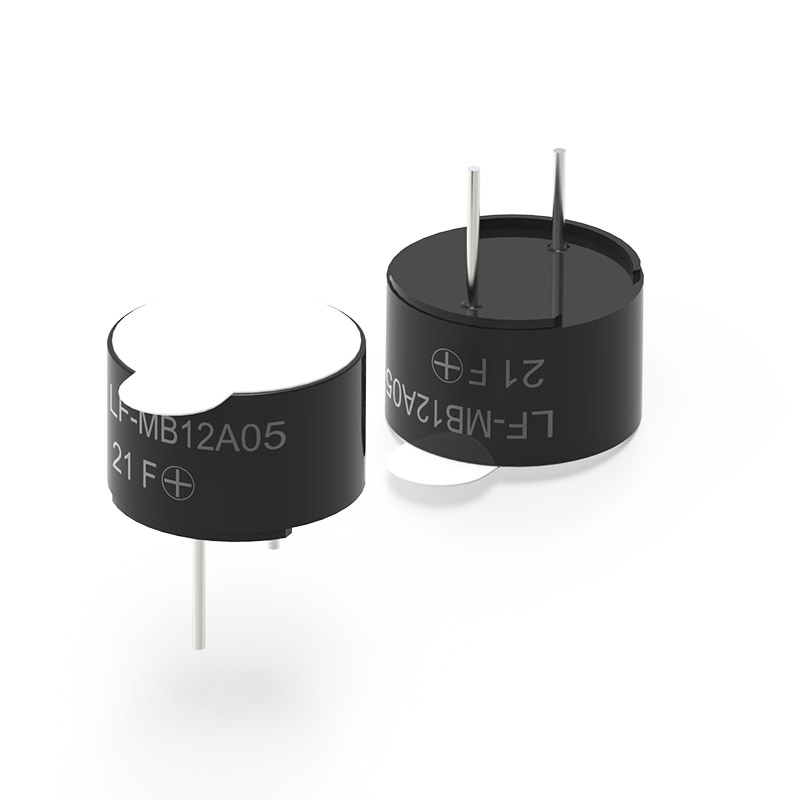

| LF-MB12A05 | Φ12.0 | 7.5 | 圓形 Round |
DIP | 5.0 | 3.0 ~ 7.0 | Max. 30 mA / 5 VDC |
2.3 ± 0.4 | Min. 83 dB / 5 VDC / 10 cm |
| LF-MB12A12 | Φ12.0 | 7.5 | 圓形 Round |
DIP | 12.0 | 9.0 ~ 15.0 | Max. 30 mA / 12 VDC |
2.3 ± 0.3 | Min. 83 dB / 12 VDC / 10 cm |
| LF-MB12B01 | Φ12.0 | 9.5 | 圓形 Round |
DIP | 1.5 | 1.3 ~ 2.0 | Max. 20 mA / 1.5 VDC |
2.3 ± 0.3 | Min. 75 dB / 1.5 VDC / 10 cm |
| LF-MB12B06 | Φ12.0 | 9.5 | 圓形 Round |
DIP | 5.0 | 3.0 ~ 7.0 | Max. 30 mA / 5 VDC |
2.3 ± 0.3 | Min. 90 dB / 5 VDC / 10 cm |
| LF-MB12B12 | Φ12.0 | 9.5 | 圓形 Round |
DIP | 12.0 | 8.0 ~ 15.0 | Max. 30 mA / 12 VDC |
2.3 ± 0.3 | Min. 85 dB / 12 VDC / 10 cm |
| LF-MB12B24 | Φ12.0 | 9.5 | 圓形 Round |
DIP | 24.0 | 15.0 ~ 27.0 | Max. 30 mA / 24 VDC |
2.3 ± 0.3 | Min. 90 dB / 24 VDC / 10 cm |
| LF-MB12D05 | Φ12.0 | 9.5 | 圓形 Round |
DIP | 5.0 | 3.0 ~ 6.0 | Max. 30 mA / 5 VDC |
2.4 ± 0.1 | Min. 88 dB / 5 VDC / 10 cm |
| LF-MB13T03 | 12.8 * 12.8 | 10.0 | 方形 Square |
SMT | 3.0 | 2.0 ~ 5.0 | Max. 30 mA / 3 VDC |
2.3 ± 0.3 | Min. 90 dB / 3 VDC / 10 cm |
| LF-MB13T05 | 12.8 * 12.8 | 10.0 | 方形 Square |
SMT | 3.0 | 4.0 ~ 7.0 | Max. 30 mA / 3 VDC |
2.4 ± 0.3 | Min. 90 dB / 3 VDC / 10 cm |
| LF-MB13T05A | 12.8 * 12.8 | 7.4 | 方形 Square |
SMT | 5.0 | 4.0 ~ 7.0 | Max. 30 mA / 5 VDC |
2.4 ± 0.3 | Min. 85 dB / 5 VDC / 10 cm |
| LF-MB13T12 | 12.8 * 12.8 | 10.0 | 方形 Square |
SMT | 12.0 | 8.0 ~ 16.0 | Max. 30 mA / 12 VDC |
2.4 ± 0.3 | Min. 90 dB / 12 VDC / 10 cm |
| LF-MB16A12-A | Φ16.0 | 14.0 | 圓形 Round |
線 Wire | 12.0 | 8.0 ~ 15.0 | Max. 30 mA / 12 VDC |
2.3 ± 0.4 | Min. 85 dB / 12 VDC / 10 cm |
| LF-MB16A24-B | Φ16.0 | 14.0 | 圓形 Round |
線 Wire | 24.0 | 20.0 ~ 28.0 | Max. 30 mA / 24 VDC |
2.3 ± 0.4 | Min. 85 dB / 24 VDC / 10 cm |
| LF-MB26B12 | Φ26.0 | 15.0 | 圓形 Round |
線 Wire | 12.0 | 8.0 ~ 16.0 | Max. 40 mA / 12 VDC |
0.4 ± 0.1 | Min. 85 dB / 12 VDC / 10 cm |
| LF-MB26B24 | Φ26.0 | 15.0 | 圓形 Round |
線 Wire | 24.0 | 20.0 ~ 28.0 | Max. 40 mA / 24 VDC |
0.4 ± 0.1 | Min. 85 dB / 24 VDC / 10 cm |
As a buzzer manufacturer of standard magnetic buzzer, we offer outstanding quality products at competitive prices. With an extensive product line of products, combined with our ability to design custom products, Ariose Electronics Co., Ltd. is confident that we will provide the best magnetic buzzer and SMD magnetic buzzer for our customers’ needs. If you are looking for suppliers and long-term mutually beneficial partnerships, we are ready to offer you our services.
