LF-K2020B045T-A
Micro Speaker
Specification
| Nominal Impedance | 8 Ω ± 15% at 2KHz |
| Resonance Frequency | 1,400Hz ± 20% |

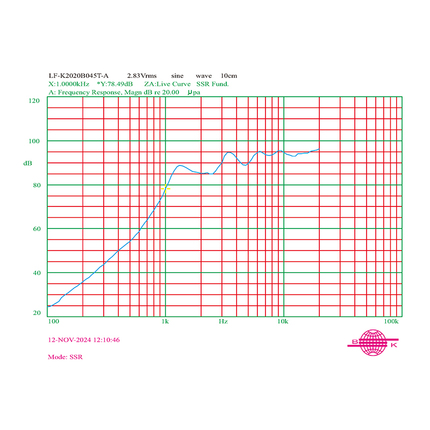

| Effective Freq. Range | Fo ～ 6KHz |
| Sound Pressure Level | 87 ± 3dB / input 2.83Vrms sine wave at 10cm / average 1,300Hz~4,000Hz |
| Input Power ( Nom. / Max. ) | 1.0W / 1.5W |
| Distortion | Max. 10% at 1KHz / input 1.0W |
| Operating Temperature | -40 ℃ ~ +85 ℃ |
| Weight | 2.9g |
